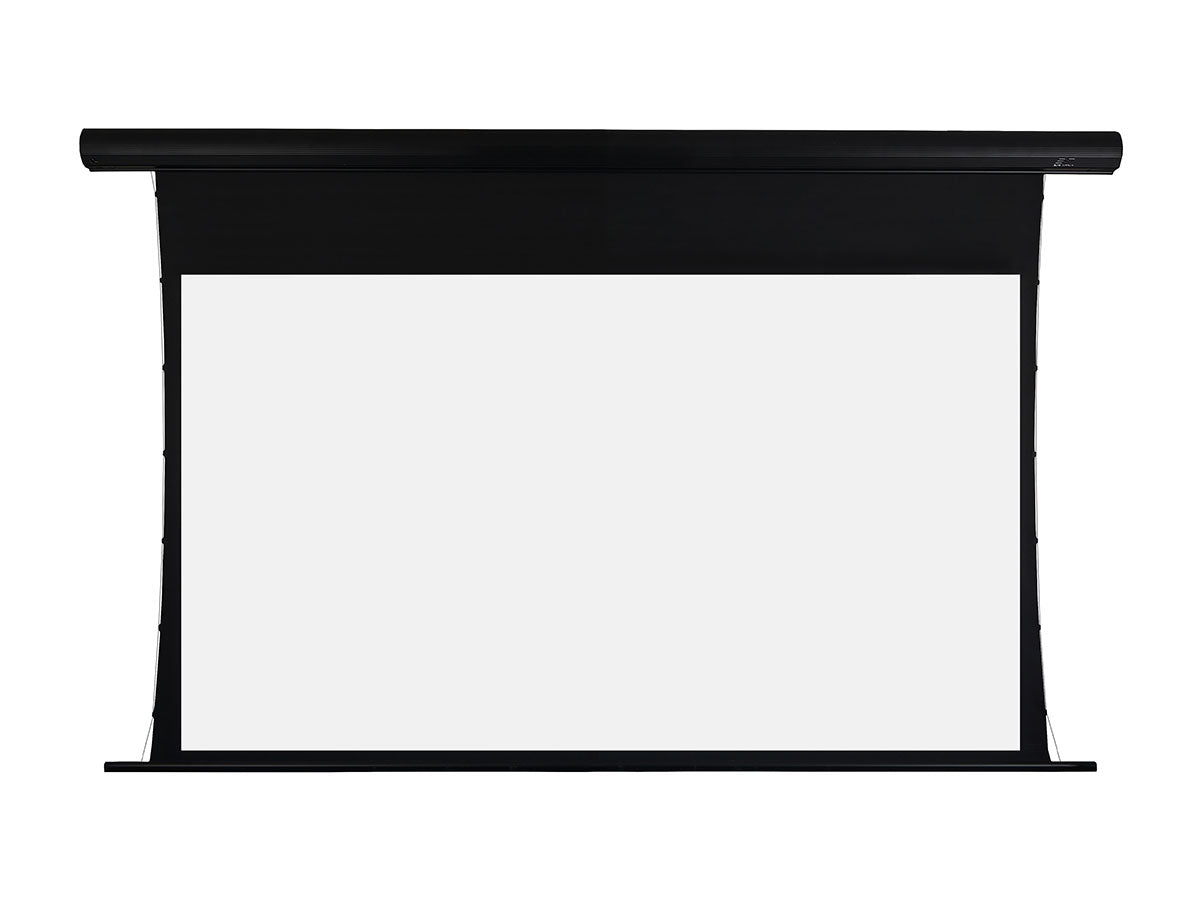

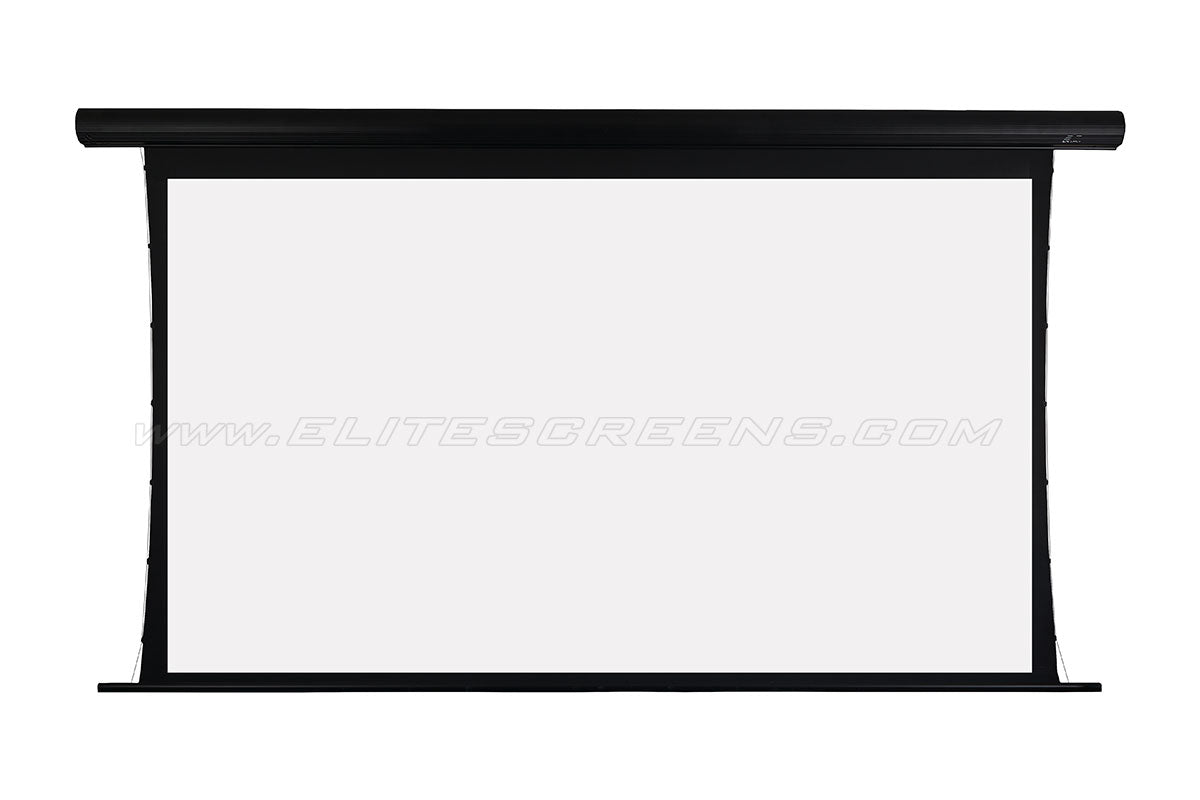

Saker Tab-Tension AcousticPro UHD Series

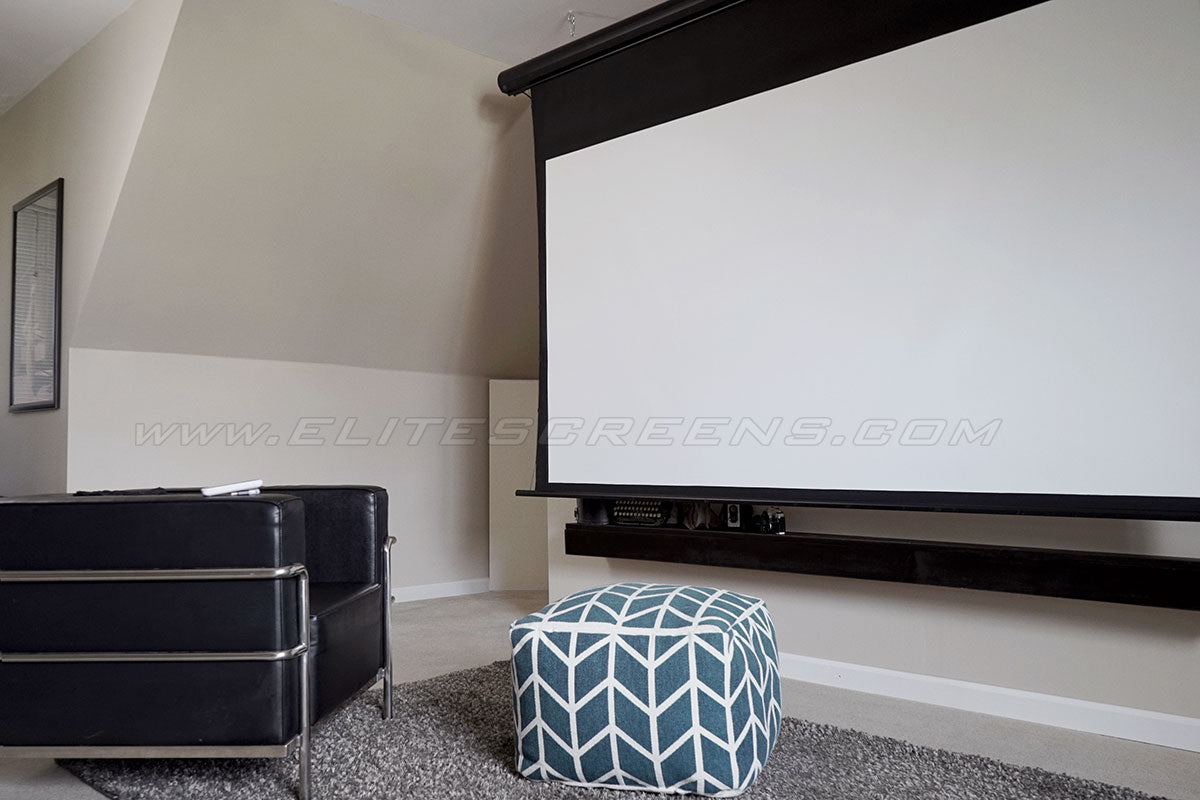

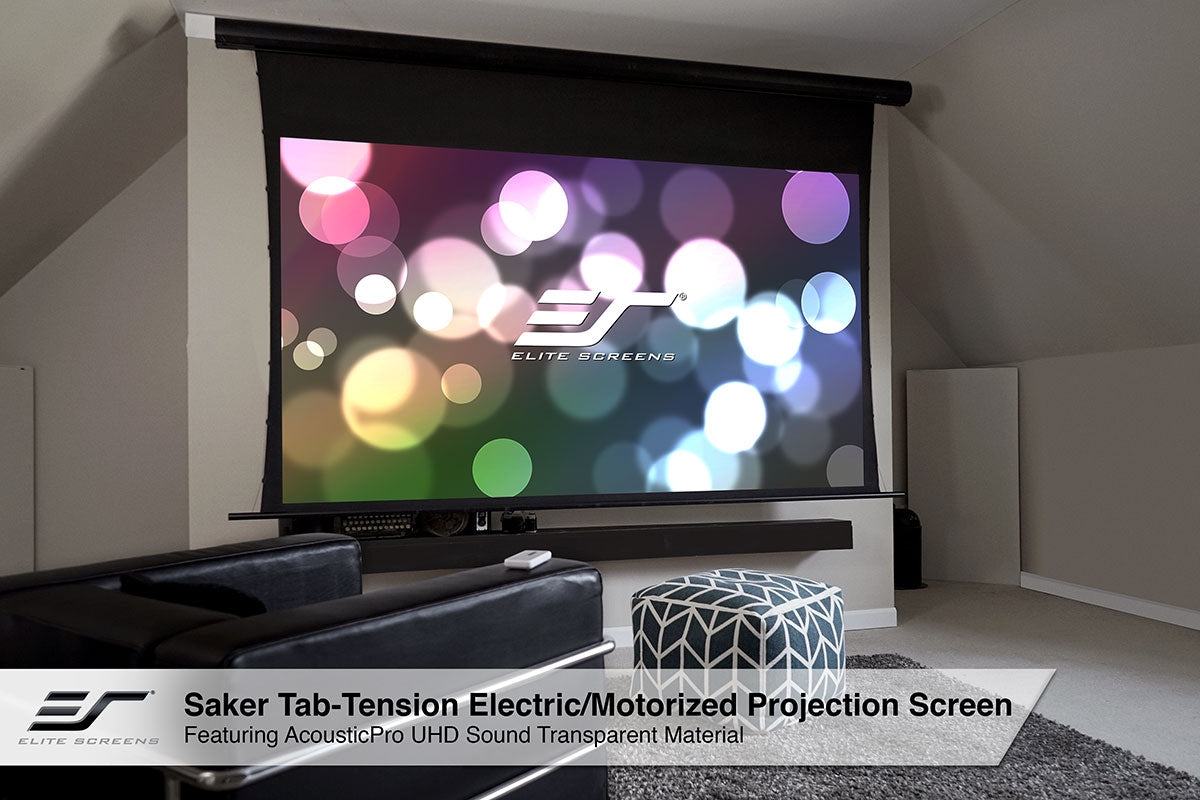

The Saker Tab-Tension AcousticPro UHD Series is an acoustically transparent Ultra High Definition electric/motorized tab-tensioned projection screen. The AcousticPro UHD material is designed to complement in-wall speakers while allowing sound to pass through the material with minimal attenuation. Its tight perforated weave material allows a superior AT performance without sacrificing picture quality. Standard features include a wireless 5-12 volt trigger, IR/RF remote control package, and a detachable wall box controller.

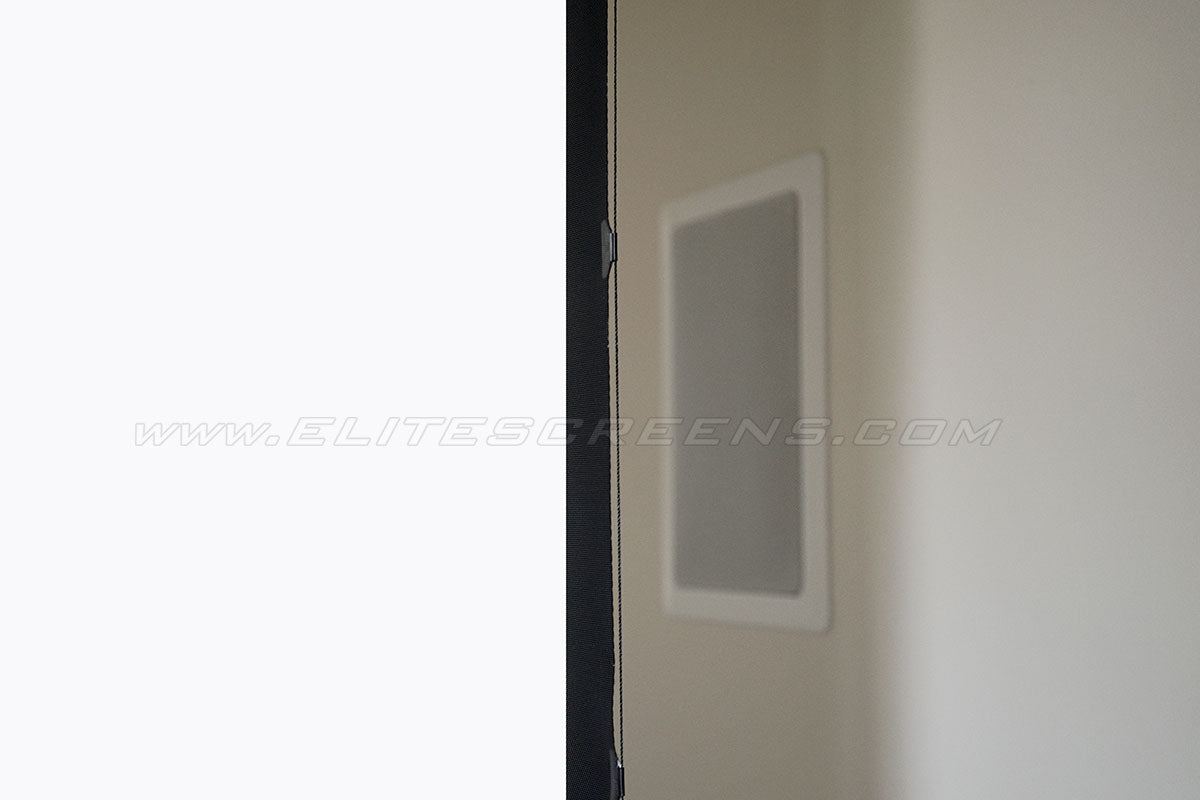

Note: Black masking borders are entirely made of the AcousticPro UHD sound transparent material.

Screen Material

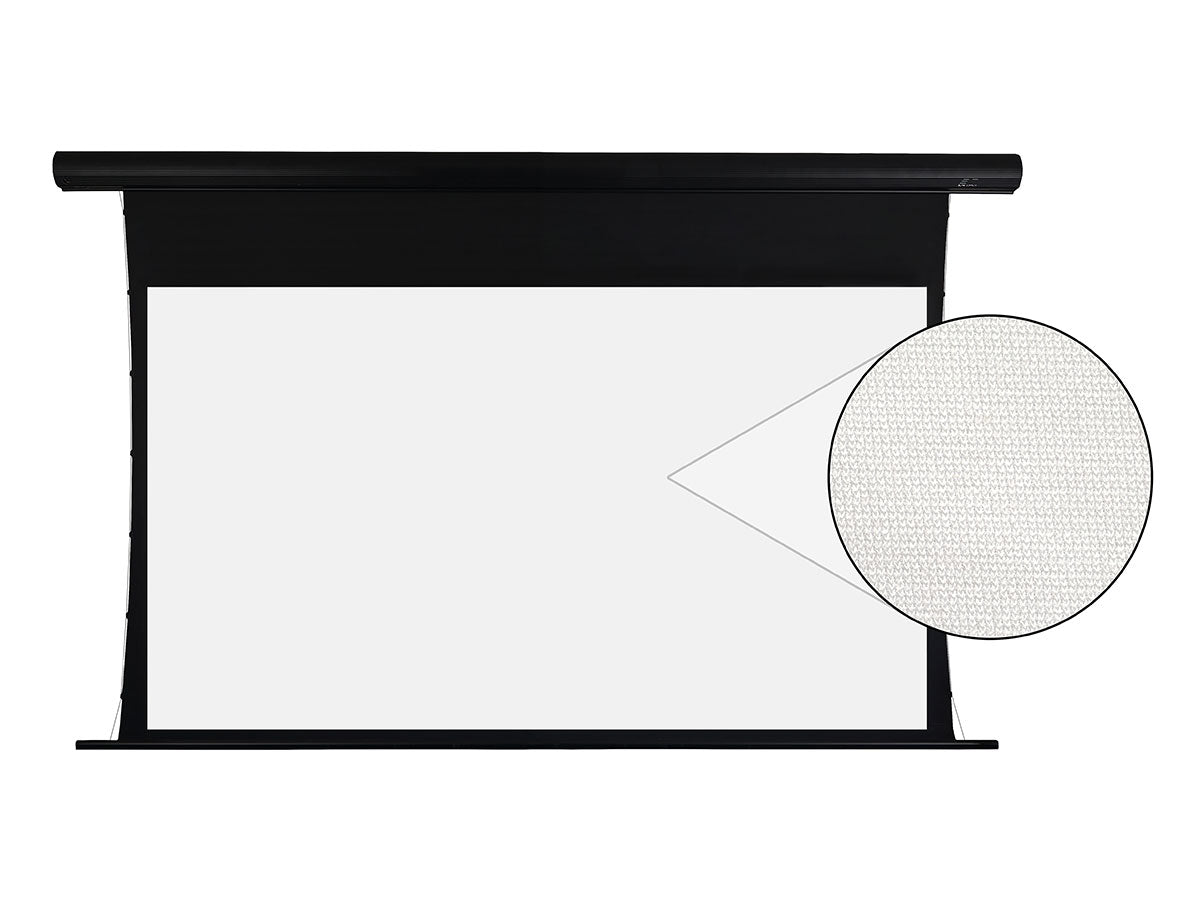

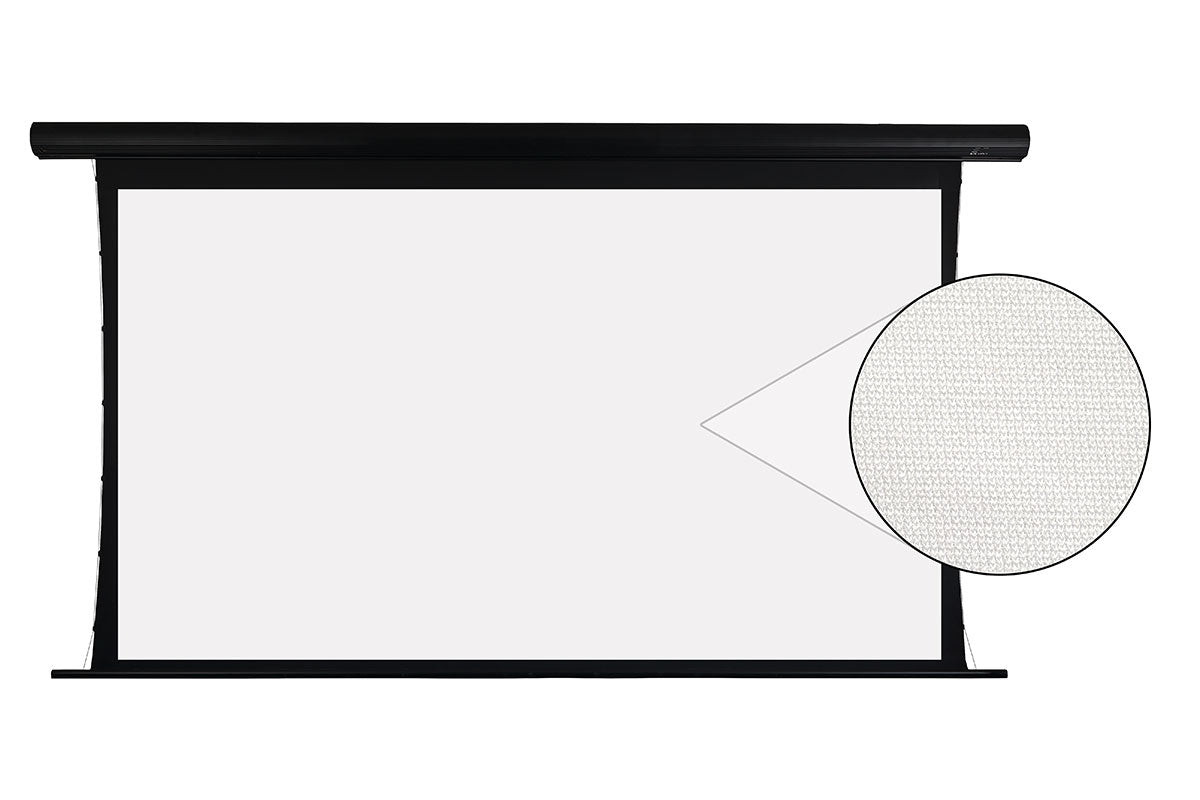

• AcousticPro UHD 1.0 Gain perforated weave acoustically transparent front projection material
• 180° wide viewing angle
• Active 3D, 4K Ultra HD, and HDR Ready
• Compatible with Standard Throw projectors ONLY
• Standard black masking borders
• Available in the following range of diagonal sizes:
  • 100″ – 180″ in 16:9 format

Design and Installation

• Flush hidden wall mounts allow screen to slide horizontally for proper centering

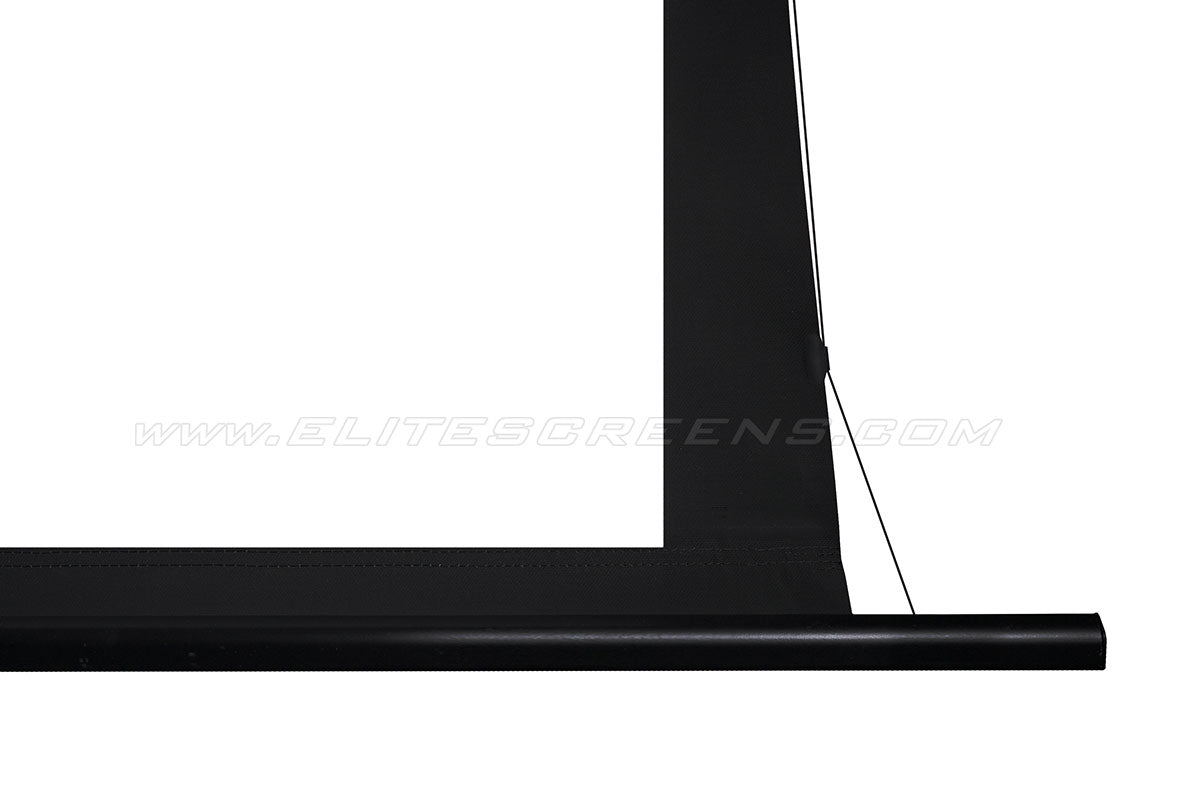

• Tab-tension design helps maintain a flat projection surface

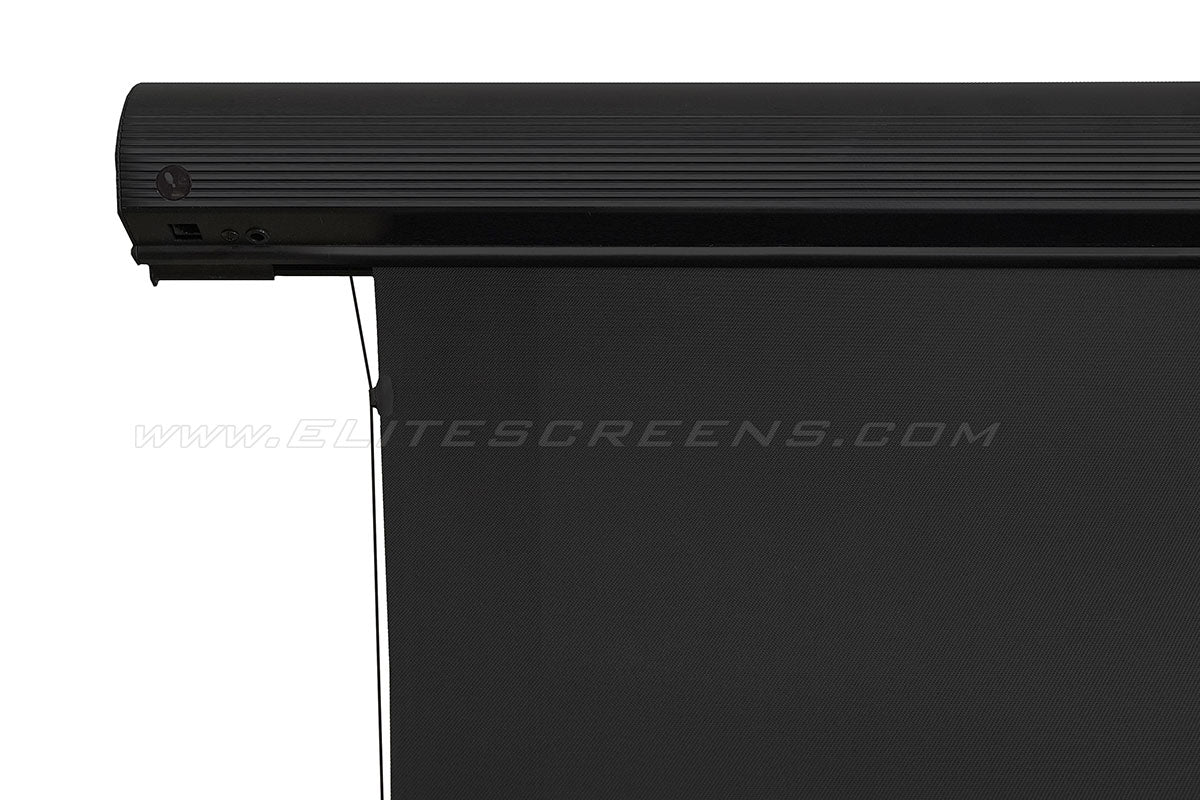

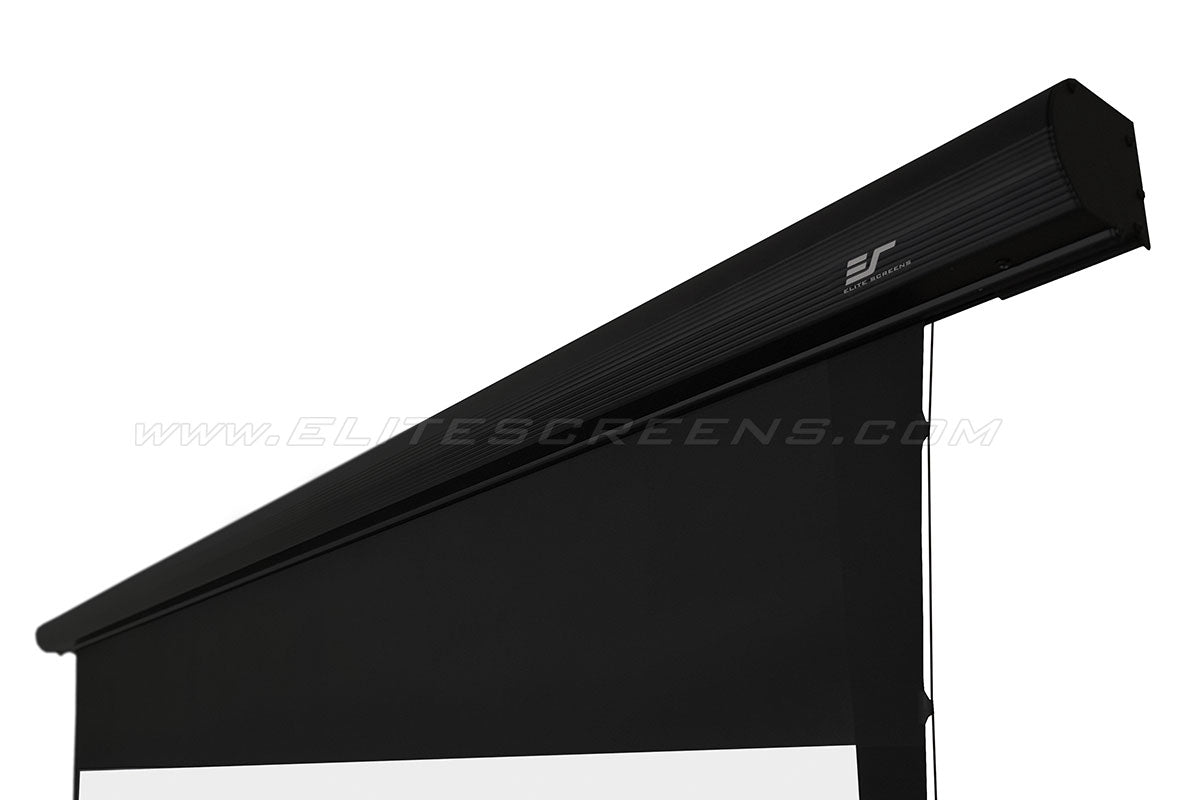

• Curved aluminum enamel black case with parallel grooves
• Extra top black masking border for high ceiling installations
• Plug & Play ready, no hardwire installation required

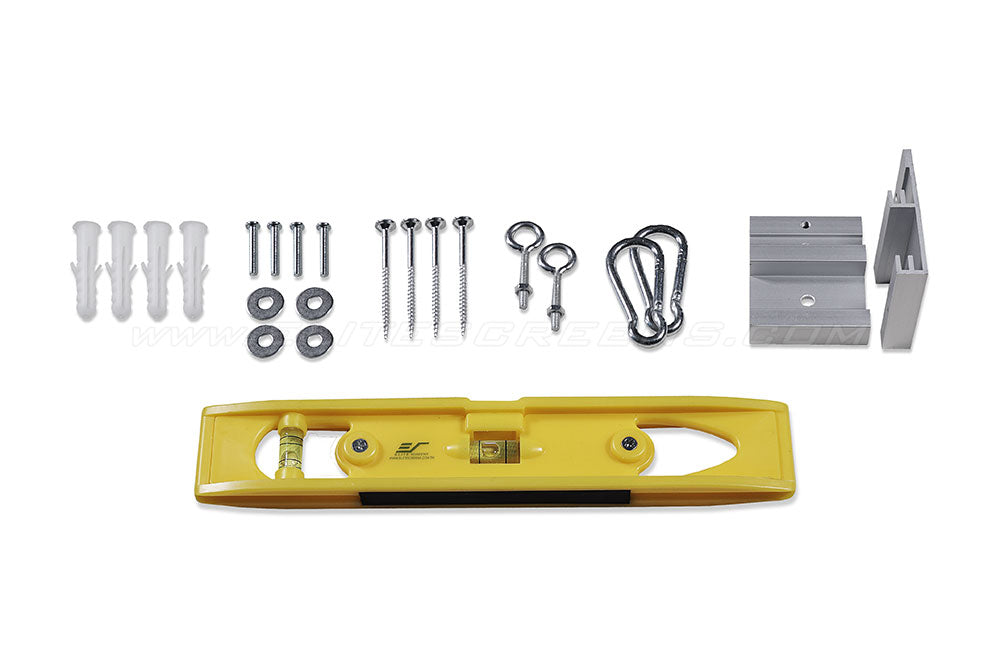

• Mounting hardware kit included for wall or ceiling installation

Control System- SWIFT-RC1

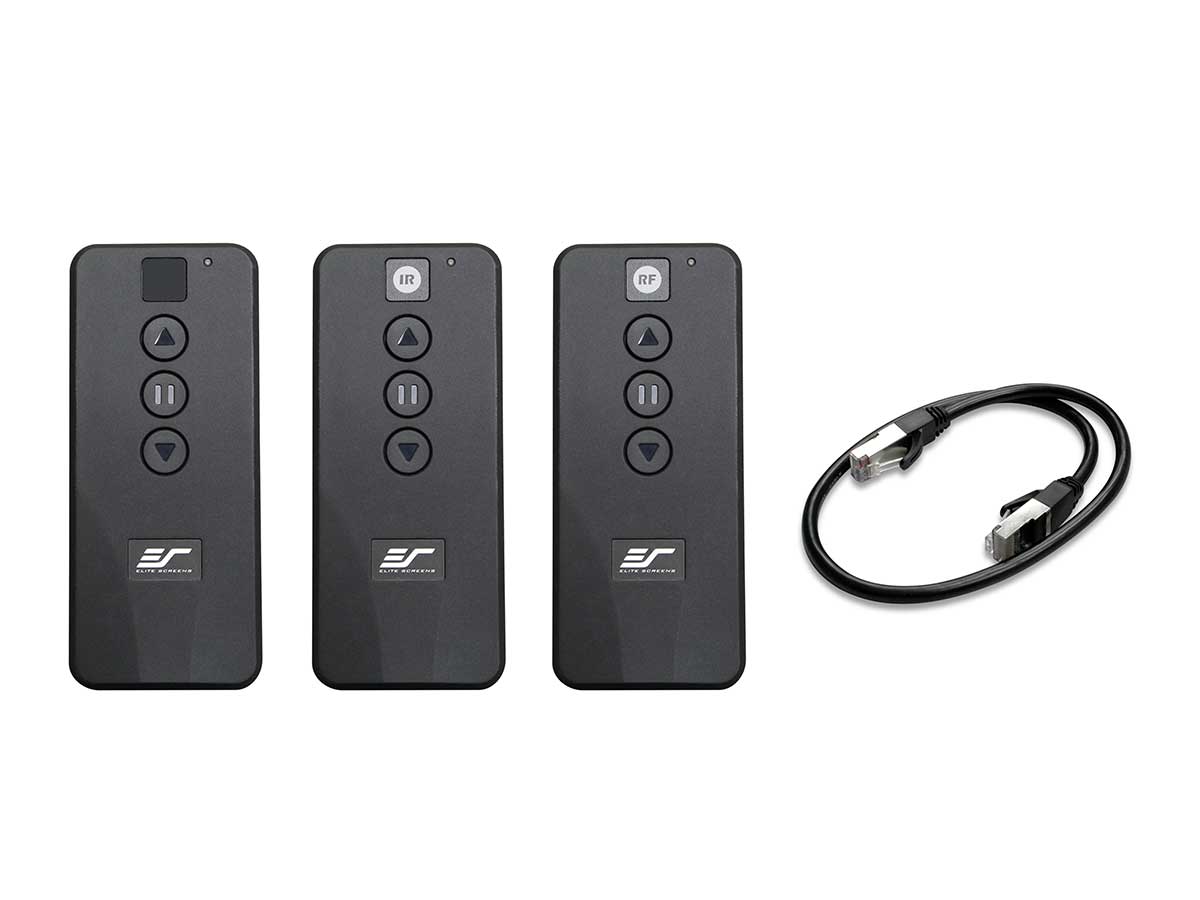

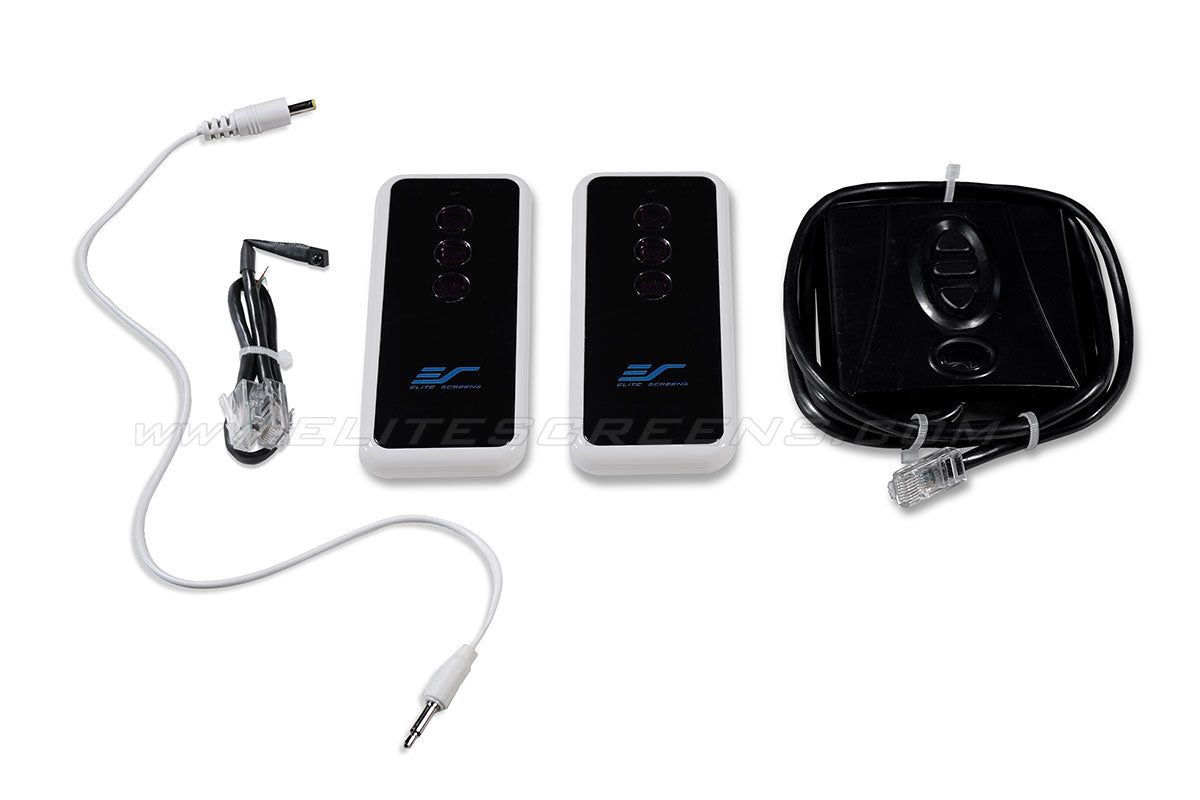

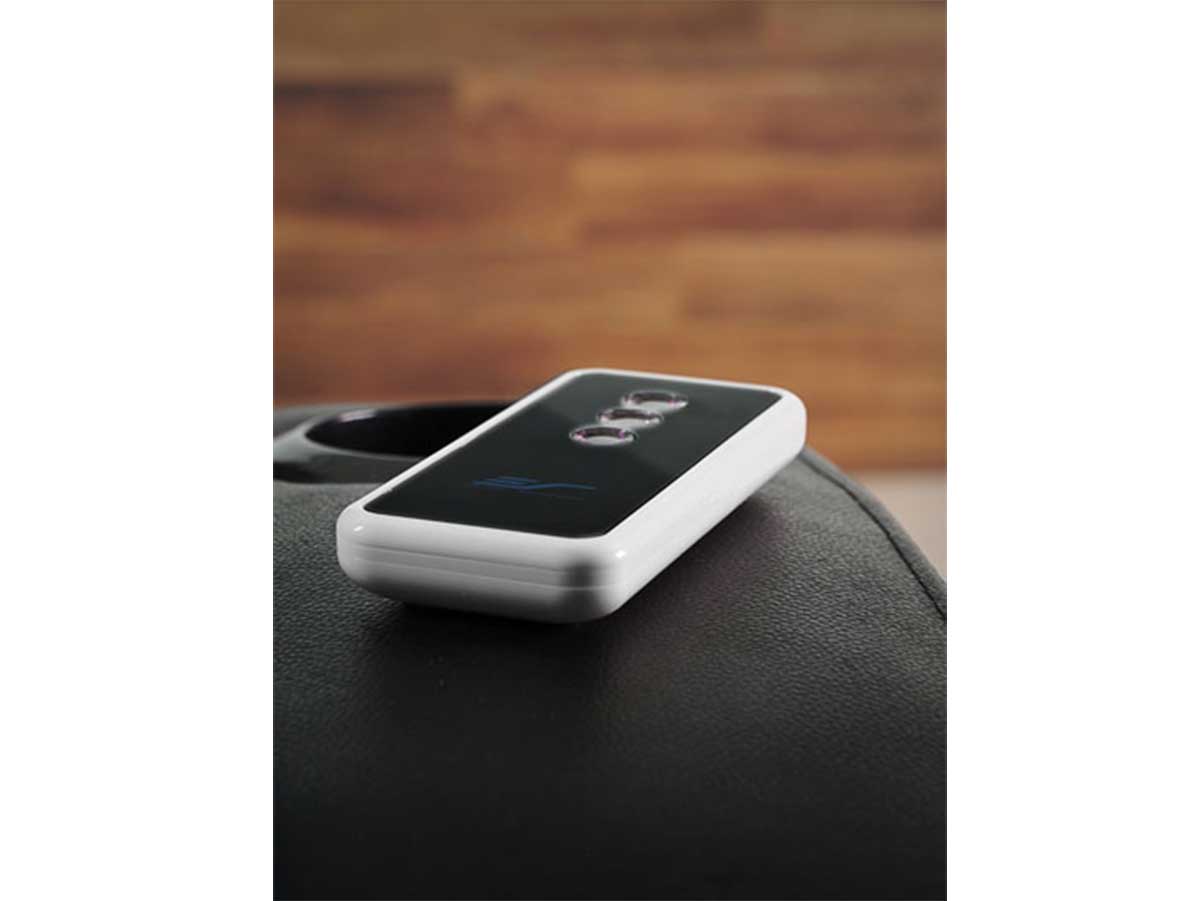

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
  • Wired 12v trigger capability via wall box controller
  • Wireless 12v trigger capability via Radio Frequency remote control

Quality and Reliability

• Silent operation synchronous motor and low power consumption
• Flame Retardant: Complies with NFPA 701 Standards
• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
